High-performance dry non-concrete floor deck roll forming machine produces self-supporting steel floor decks without concrete pouring. Fully automatic, heavy-duty design for steel structure platforms, warehouses and industrial buildings worldwide.

1. Introduction

The dry non-concrete floor deck roll forming machine is a new-generation steel floor forming equipment specially designed for modern prefabricated construction. Unlike traditional composite floor decks that require concrete pouring, the dry floor deck panels areself-supporting, no concrete filling, no formwork required.

This innovative floor deck solution has become extremely popular in global steel structure projects, logistics warehouses, factory mezzanines, industrial platforms, and light commercial buildings. It greatly shortens construction cycles, reduces overall project costs, and avoids long concrete curing time.

2. What Is Dry Non-Concrete Floor Deck?

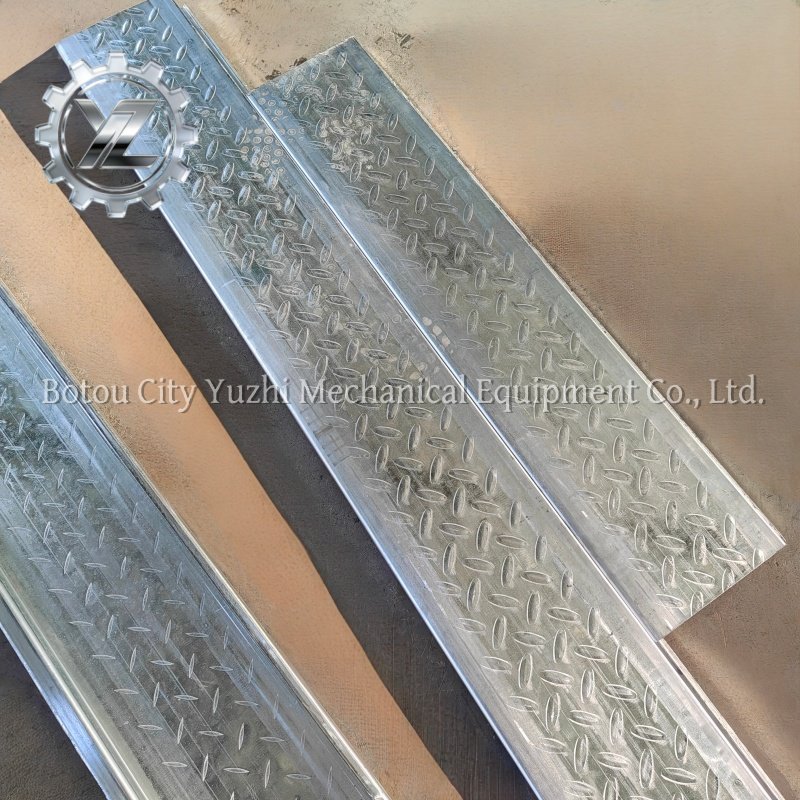

Dry floor deck, also known as no-cast floor deck or self-supporting steel deck, features optimized rib structure and interlocking lap joints. The finished steel panels can directly bear construction and equipment loads without pouring concrete on the surface.

It solves multiple traditional construction pain points:

• No concrete pouring & no curing waiting
• No temporary formwork support required
• Lightweight but high structural strength
• Clean construction with no dust pollution
• Fast installation and reusable in temporary projects

3. Core Advantages of Our Dry Floor Deck Roll Forming Machine

3.1 No Concrete Process, Ultra-Fast Project Delivery

Panels produced by this machine can be directly laid as floor bearing plates. Construction progress is 3–5 times faster than traditional concrete floor systems, allowing subsequent electrical, mechanical and decoration works to start earlier.

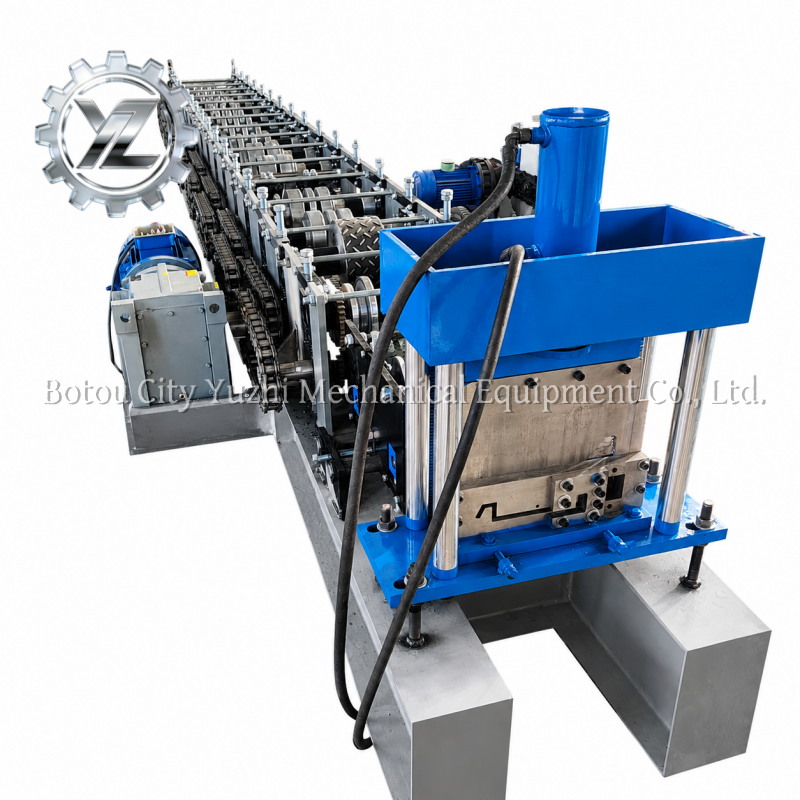

3.2 Heavy-Duty Machine Structure, Stable 24h Running

The whole machine adopts thickened welded steel frame with stress relief treatment. Reinforced solid main shafts and high-hardness forming rollers ensure long-term stable operation without deformation, sheet deviation or size errors.

3.3 Precision Forming & Perfect Lap Joint

Gradual multi-stage rolling technology ensures accurate rib height, spacing and interlocking lap size. The finished floor decks connect tightly without gaps, effectively preventing dust leakage and improving overall floor rigidity.

3.4 Full Automatic PLC Intelligent Control

Equipped with international standard PLC system and touch screen operation. Operators can set cutting length, production quantity and speed freely. The system supports multi-language switching, automatic counting and fault alarm, greatly reducing manual operation errors.

3.5 Durable Hydraulic Cutting System

Adopts high-precision hydraulic stop cutting system with Cr12MoV alloy blades. Cutting surface is smooth and burr-free. Independent sealed hydraulic station effectively prevents oil leakage, keeping finished panels clean and qualified.

3.6 Wide Material Compatibility

The machine can process GI galvanized steel, PPGI color steel and low-alloy high-strength steel. Suitable for material thickness from 0.6mm to 2mm, fully meeting industrial load-bearing standards for mezzanine floors and factory platforms.

4. Production Line Working Process

Manual / Hydraulic Decoiler → Feeding Guide → Multi-Stage Roll Forming → Length Encoder Measuring → Hydraulic Automatic Cutting → Finished Product Receiving

One-person operation realizes fully automatic continuous production, saving labor costs and improving workshop efficiency.

5. Standard Technical Parameters

6. Main Application Scenarios of Dry Floor Deck Panels

• Warehouse & Logistics Platforms: Multi-layer steel structure mezzanine floors
• Industrial Factories: Workshop partition floors and equipment bearing platforms
• Commercial Buildings: Office steel structure floors, exhibition platforms
• Temporary Construction Projects: Fast-install & reusable floor systems
• Agricultural & Light Industrial Buildings: Clean and fast floor solutions

7. Why Choose Our Dry Non-Concrete Floor Deck Machine?

• No redundant cost: Save concrete material, formwork and curing time
• High stability: No sheet deformation, no size deviation
• Low maintenance: Wear-resistant rollers and durable hydraulic system
• Full export standard: CE & ISO compliant, suitable for global shipping
• Custom support: Profile size, punching, embossing and voltage customization
• Global after-sales: 24/7 online technical support + English operation documents

8. Frequently Asked Questions

Q1: What is the difference between dry floor deck and traditional composite floor deck?

A: Dry floor deck requires no concrete pouring. It works as self-bearing floor slab directly, saving huge construction time and concrete cost.

Q2: Is dry floor deck strong enough for industrial use?

A: Yes. Optimized rib structure and high-strength steel material ensure excellent load-bearing capacity for warehouse mezzanines and factory platforms.

Q3: Can you customize the deck profile and size?

A: Fully customizable. We can adjust effective width, rib height, punching holes and anti-slip patterns according to customer drawings.

Q4: What is your after-sales service for overseas buyers?

A: We provide English manuals, installation videos, remote debugging guidance and lifelong low-cost spare parts supply.

9. Conclusion

With the rapid development of global prefabricated construction, dry non-concrete floor deck systems have become the most cost-effective and efficient floor solution. Our fully automatic dry floor deck roll forming machine helps manufacturers produce high-quality self-supporting floor panels steadily, improving project efficiency and winning more local construction orders.

Contact us today to get free machine drawings, production videos and latest quotation!
