How Does A Cold Roll Forming Machine Work? Complete Working Principle

A cold roll forming machine is the core equipment for continuous metal profile processing, widely used in manufacturing steel purlins, roof panels, light steel frames and customized metal profiles. Unlike hot forming equipment, the cold roll forming line shapes metal strips at room temperature, ensuring stable material performance, smooth surface and high dimensional accuracy. Understanding its working principle helps overseas buyers better select and operate professional metal roll forming equipment.

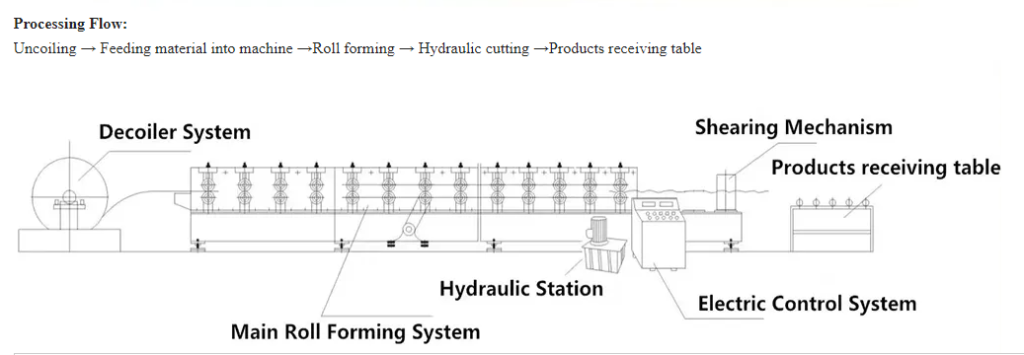

1. Feeding & Leveling Process

The whole working process starts with material feeding. Steel coils such as galvanized steel and carbon steel are placed on the uncoiler, which automatically releases metal strips. The strips then pass through a leveling device to eliminate bending and deformation caused by coil storage. This step guarantees flat raw materials, laying a foundation for precise forming of the automatic roll forming machine.

2. Gradual Roller Forming

This is the core working link of the cold roll forming system. The flattened metal strip is sent to multiple groups of precision rollers. Different from one-time bending, the equipment adopts gradual extrusion molding. Each roller group makes slight bending adjustments to the metal strip, slowly converting flat steel plates into target profiles like C purlins, Z purlins and wall panels. This gradual processing avoids metal cracks and ensures uniform product quality.

3. Punching & Hydraulic Cutting

Most industrial roll forming machine models are equipped with automatic punching and flying shear systems. After profile forming, the equipment completes fixed-size hole punching according to production requirements, which meets the installation needs of steel structure engineering. Finally, the hydraulic cutting device automatically cuts profiles to the preset length without stopping the machine, realizing uninterrupted continuous production.

4. Finished Product Output

The processed metal profiles are sent to the output table for automatic stacking and sorting. Supported by PLC intelligent control, the whole production process runs automatically with minimal manual intervention. It effectively improves production efficiency and reduces error rates, which is why automatic C Z purlin roll forming machine and light gauge steel forming equipment are popular in global manufacturing industries.

Final Words

Simple and efficient, the cold roll forming process realizes low-cost, high-precision mass production of metal profiles. Professional roll forming machine manufacturers optimize roller design and control systems to adapt to different material thicknesses and profile types, meeting diverse industrial production demands worldwide.
