Introduction to Square Tube Forming Machine

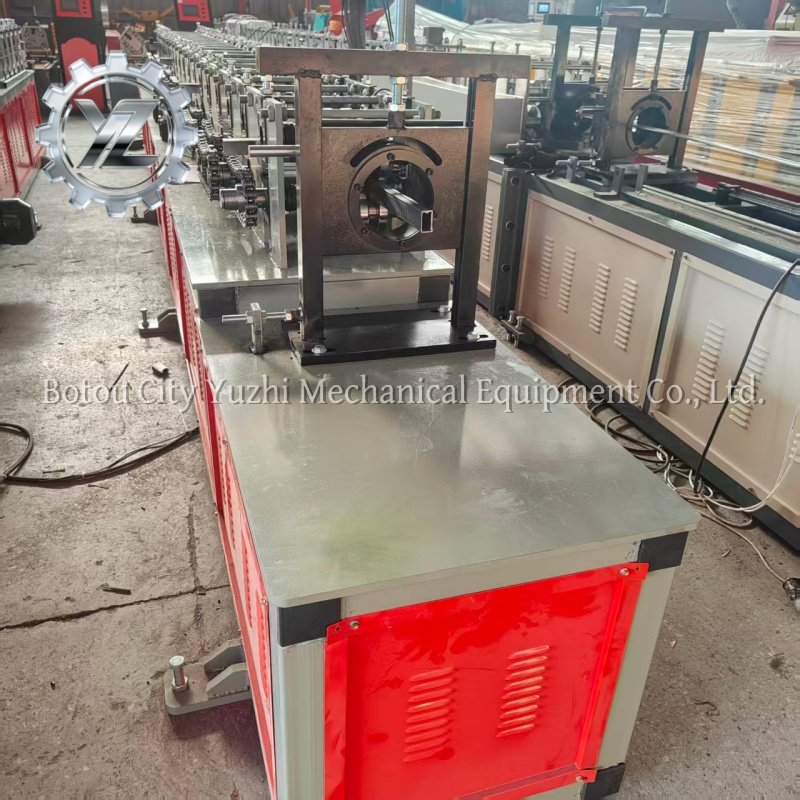

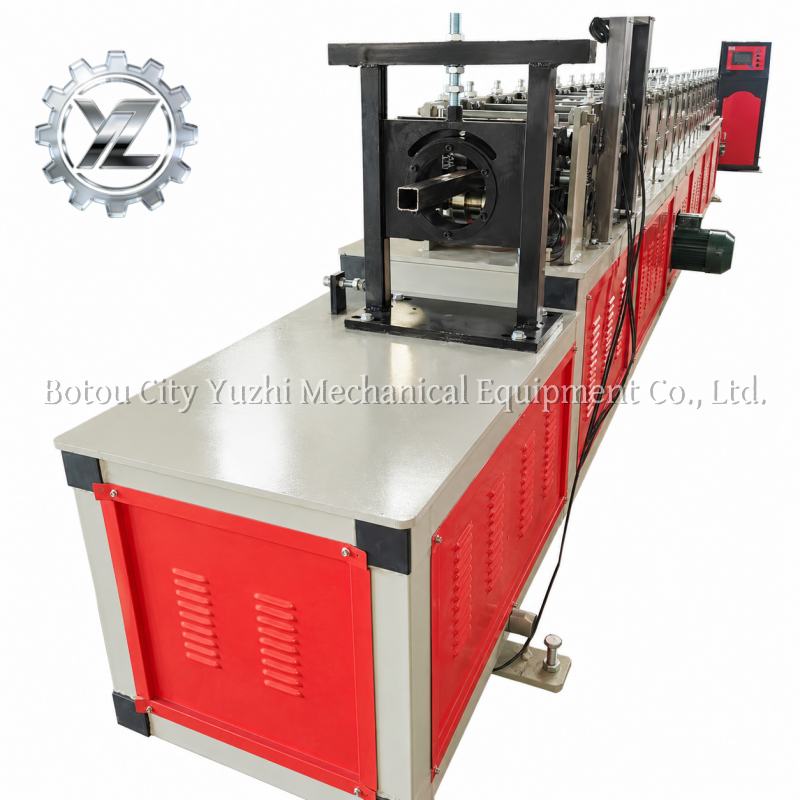

Square tube forming machine is a professional automatic roll forming equipment designed for continuous production of square and rectangular metal tubes. Widely used in steel structure engineering, architectural decoration, hardware processing, and auto parts manufacturing, thisrectangular tube forming machine completely solves the pain points of traditional manual segmented processing, such as low efficiency, poor precision, serious material waste, and inconsistent finished product quality.

Different from conventional intermittent processing equipment, our fully automatic square tube forming machine integrates feeding, roll forming, welding, sizing, fixed-length cutting, and finishing into one continuous production line. It is the ideal core equipment for metal tube processing enterprises to upgrade production lines, reduce operating costs, and improve product market competitiveness.

Working Principle of Automatic Square Tube Forming Line

The core technology of the square tube roll forming machine adopts advanced progressive cold rolling molding technology, supporting the mainstream round tube to square tube forming process without complicated pre-treatment of raw materials.

The production line is equipped with multiple groups of precisely arranged forming rollers. Through gradual and standardized cold rolling calibration, the equipment accurately shapes round metal pipes into standard square tubes and rectangular tubes. Matched with automatic straightening system, laser welding system, weld polishing device, and fixed-length tracking cutting system, the whole process realizes unmanned continuous operation.

From raw material feeding to finished tube discharging, all procedures are completed in one go without secondary manual processing, ensuring stable forming accuracy and highly consistent tube specifications in mass production.

Core Advantages of High-Precision Square Tube Forming Machine

1. Ultra-High Forming Precision, Stable Finished Tube Quality

Our square tube forming machine controls the dimensional tolerance within ±1mm. The produced square and rectangular tubes feature uniform side length and wall thickness, smooth surface without scratches or deformation.

Adopting advanced laser welding technology, the weld seam is narrow, flat and firm, which will not damage the mechanical properties of the tube. All finished products fully meet the production standards of high-end engineering and precision hardware accessories, supporting high-quality output of high-standard pipe fittings.

2. Fast Production Speed, Greatly Improved Production Capacity

This high-speed square tube making machine abandons the traditional intermittent processing mode and realizes uninterrupted continuous production. The maximum production speed can reach 20 meters per minute, and the comprehensive production capacity is more than 3 times that of traditional processing equipment.

It is equipped with non-stop tracking punching and tracking cutting functions, eliminating production pause loss and material waste caused by equipment shutdown. It is perfectly suitable for large-scale, batch and standardized tube production tasks of medium and large processing factories.

3. Strong Compatibility, Support Customized Tube Specifications

The equipment has extremely strong versatility. By replacing simple molds, it can quickly switch the production of square tubes and rectangular tubes of different specifications. The processing wall thickness ranges from 0.8mm to 2.0mm, and it supports non-standard customized tube sizes according to customer needs.

In addition to conventional carbon steel pipes, it can also process stainless steel, aluminum alloy and other metal materials, covering production scenarios such as decorative guardrails, building steel structures, mechanical equipment frames, and auto parts. One machine with multiple functions effectively reduces customers’ equipment procurement cost and site occupation cost.

4. Energy Saving and Consumption Reduction, Lower Production Cost

Adopting innovative direct forming technology, the overall energy consumption of the equipment is reduced by about 30% compared with traditional tube forming machines. The whole machine is equipped with brand-name motors, precision reducers and high-quality core accessories, with stable operation, low failure rate and long service life.

Full-automatic operation greatly reduces manual investment and labor costs. At the same time, the precise forming process avoids raw material loss caused by dimensional deviation, realizing high-cost-performance production whether for short-order trial production or long-term mass production.

5. Intelligent Control, Simple Operation and High Safety

The automatic rectangular tube forming machine is equipped with intelligent PLC control system and intuitive human-computer interaction interface. Production parameters can be set and stored with one click, and new employees can operate independently after simple training, with low operation threshold.

Built-in fault self-detection, overload protection and emergency stop functions effectively avoid production safety risks and equipment damage. The equipment can adapt to long-term uninterrupted factory operation, with stable and reliable overall performance.

Main Application Scenarios of Square and Rectangular Tube Forming Machine

Relying on the advantages of high precision, high efficiency and strong adaptability, our square tube forming machine is widely recognized by global customers and serves multiple downstream industries:

• Construction Steel Structure: Steel structure supports, curtain wall frames, factory load-bearing pipes, infrastructure profile materials
• Architectural Decoration: Guardrail profiles, door and window frames, stair handrails, landscape engineering profiles
• Industrial Manufacturing: Mechanical equipment frames, auto parts, agricultural machinery profiles, hardware products processing
• Pipe Processing Factory: Mass production of standard square and rectangular tubes, customized processing of non-standard special-shaped tubes

Why Choose Our Square Tube Forming Machine?

We focus on the R&D and manufacturing of metal roll forming equipment for many years, providing standardized mass production solutions and personalized customized production lines for global customers. All square tube forming machines adopt modular structural design, which is convenient for disassembly, transportation, installation and later maintenance, with strong versatility of accessories and low maintenance cost.

The equipment can be put into production quickly after landing without complicated debugging, helping processing enterprises quickly realize automatic and standardized production, shorten production cycles, and gain more market competitive advantages.

FAQ About Square Tube Forming Machine

1. What materials can the square tube forming machine process?

Our equipment can process carbon steel, stainless steel, aluminum alloy and other common metal materials, meeting the production needs of different industries.

2. Can the machine customize non-standard tube sizes?

Yes. We support full-size customization. According to customers’ drawing requirements and production needs, we can customize non-standard square and rectangular tube production lines and molds.

3. What is the tolerance of the finished square tube?

The professional calibration system ensures the finished tube dimensional tolerance is controlled within ±1mm, reaching the international high-precision processing standard.

4. Is after-sales service available for overseas customers?

We provide one-stop overseas services including equipment installation guidance, operation training, fault maintenance and lifelong after-sales support to ensure stable operation of customer equipment.

Final Summary

The fully automatic square tube forming machine is an essential upgraded equipment for the modern metal tube processing industry. It perfectly solves the shortcomings of traditional processing equipment such as low efficiency, low precision and high energy consumption. With high precision, high efficiency, energy saving and strong versatility, it helps global processing enterprises reduce costs and increase efficiency, and create greater economic benefits.

If you want to know more about equipment parameters, production line configuration, customized solutions and latest quotations of square tube forming machines, please feel free to contact us for one-to-one professional technical support and production scheme!
