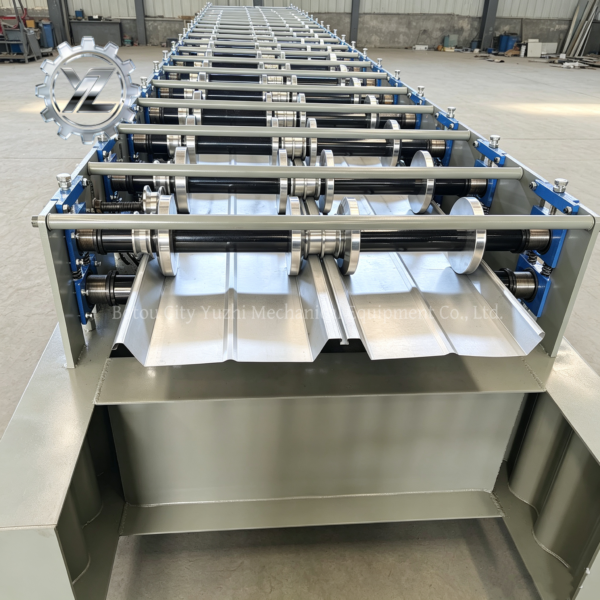

PV Standing Seam Roof Panel Roll Forming Machine, BIPV Solar Angle Chi Roof Sheet Making Machine
Automatic PV Standing Seam Roof Panel Roll Forming Machine – BIPV Solar Angle Chi Roof Sheet Equipment
Our PV standing seam roof panel roll forming machine is a new professional solar-specific forming equipment designed for BIPV photovoltaic building integration projects. This solar angle chi roof sheet machine produces dedicated solar-ready standing seam roof panels, perfectly solving the installation pain points of traditional roof solar brackets. The finished PV angle chi roof panels adopt concealed screwless design with special solar clamping groove structure, allowing non-destructive solar panel installation without drilling holes on the roof. With excellent wind resistance, waterproof performance and solar load-bearing capacity, the BIPV standing seam roof roll former is the core equipment for modern solar factory buildings, photovoltaic warehouses and solar power plant roofing projects.
1 .Product Overview
The PV standing seam roof panel roll forming machine is an upgraded version of traditional angle chi roof equipment, specially optimized for global BIPV solar building trends. Different from ordinary roof machines, this solar angle chi roof forming machine adds precise solar fixture groove forming technology on the basis of high rib concealed standing seam structure.

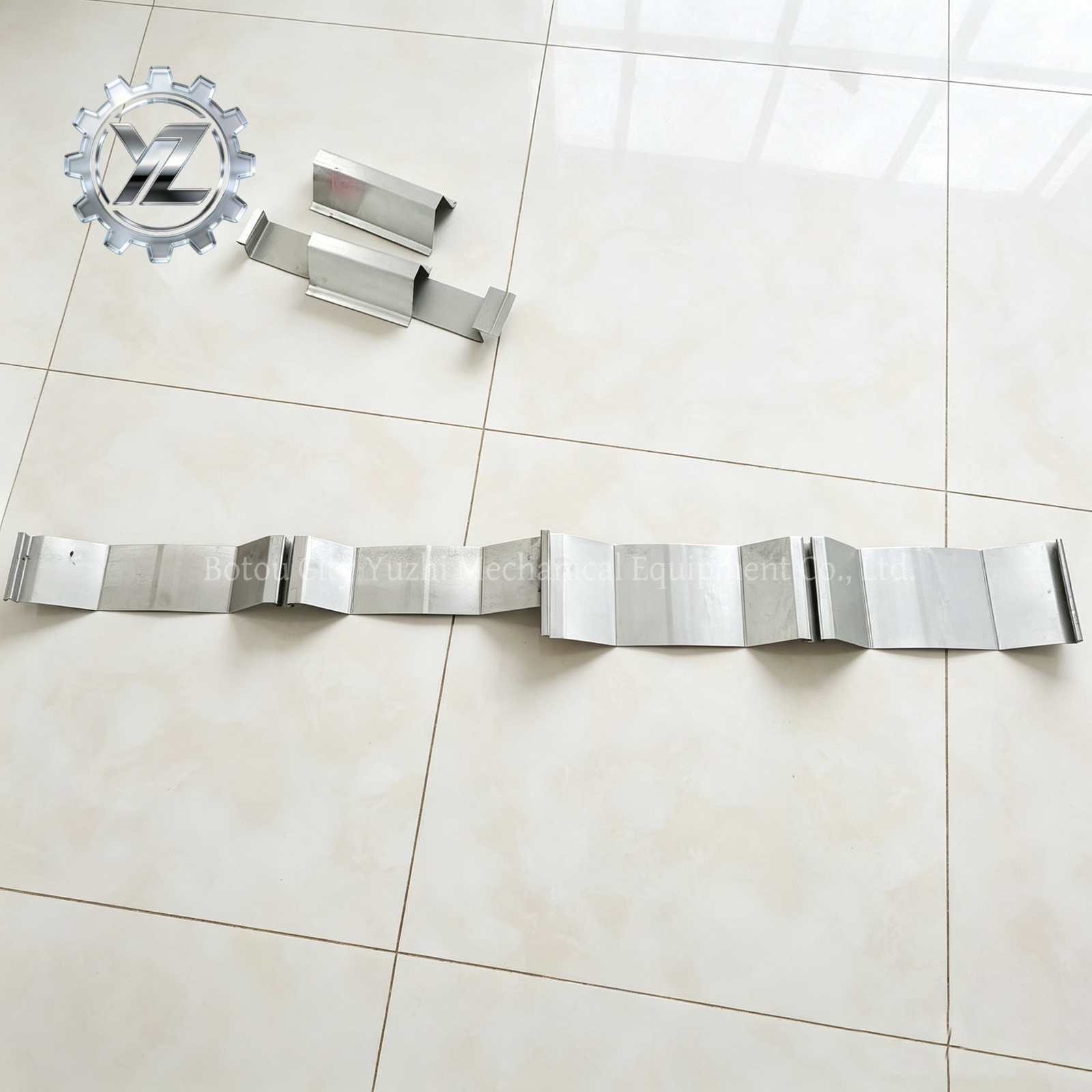

Roof panels produced by this PV solar roof machine do not require traditional welding or drilling installation. Solar modules can be directly fixed on the standing seam grooves with special aluminum clips, realizing fully non-destructive installation. It effectively avoids roof water leakage caused by hole punching and greatly improves the safety and service life of solar roofing systems. The equipment supports processing galvanized steel, PPGI, PPGL and aluminum magnesium manganese sheets, widely used in various industrial solar photovoltaic roof projects.
- Non-destructive BIPV Installation: No drilling or welding required for solar installation, completely protect the roof panel coating and substrate, zero leakage risk, greatly reduce later maintenance cost.
- High Wind Resistance & Stability: Adopts classic angle chi high rib standing seam structure, 360° full locking splicing, strong load-bearing capacity, effectively bear solar panel and wind load, suitable for coastal and high-altitude solar projects.
- Full Automatic Intelligent Production: Equipped with PLC touch screen control system, automatic feeding, leveling, forming and fixed-length cutting, stable running speed, high finished product precision and low failure rate.
- Wide Material Compatibility: Adapt to various photovoltaic building materials such as color steel coil, zinc-aluminum-magnesium coil and aluminum alloy coil, meeting different solar project grade requirements.
- Cost & Labor Saving: Integrated solar groove molding, no secondary processing needed, greatly improving solar roof construction efficiency and saving solar bracket and installation costs.
2. Machine Standard Configuration
The complete PV solar angle chi roof panel roll forming line consists of full set standard accessories:
- Manual / Hydraulic Decoiler
- Automatic Feeding & Leveling Device

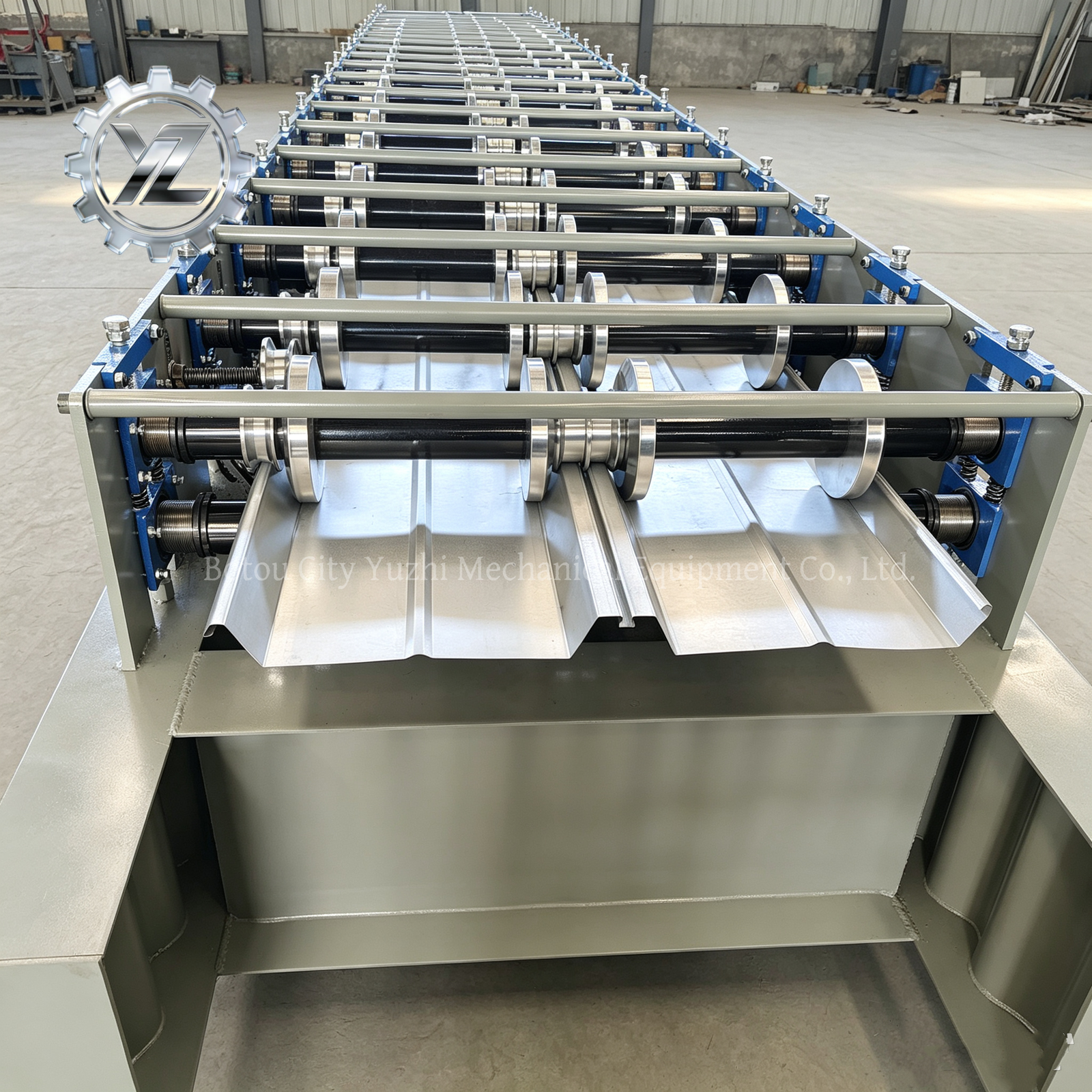

- PV Special Standing Seam & Solar Groove Forming Station

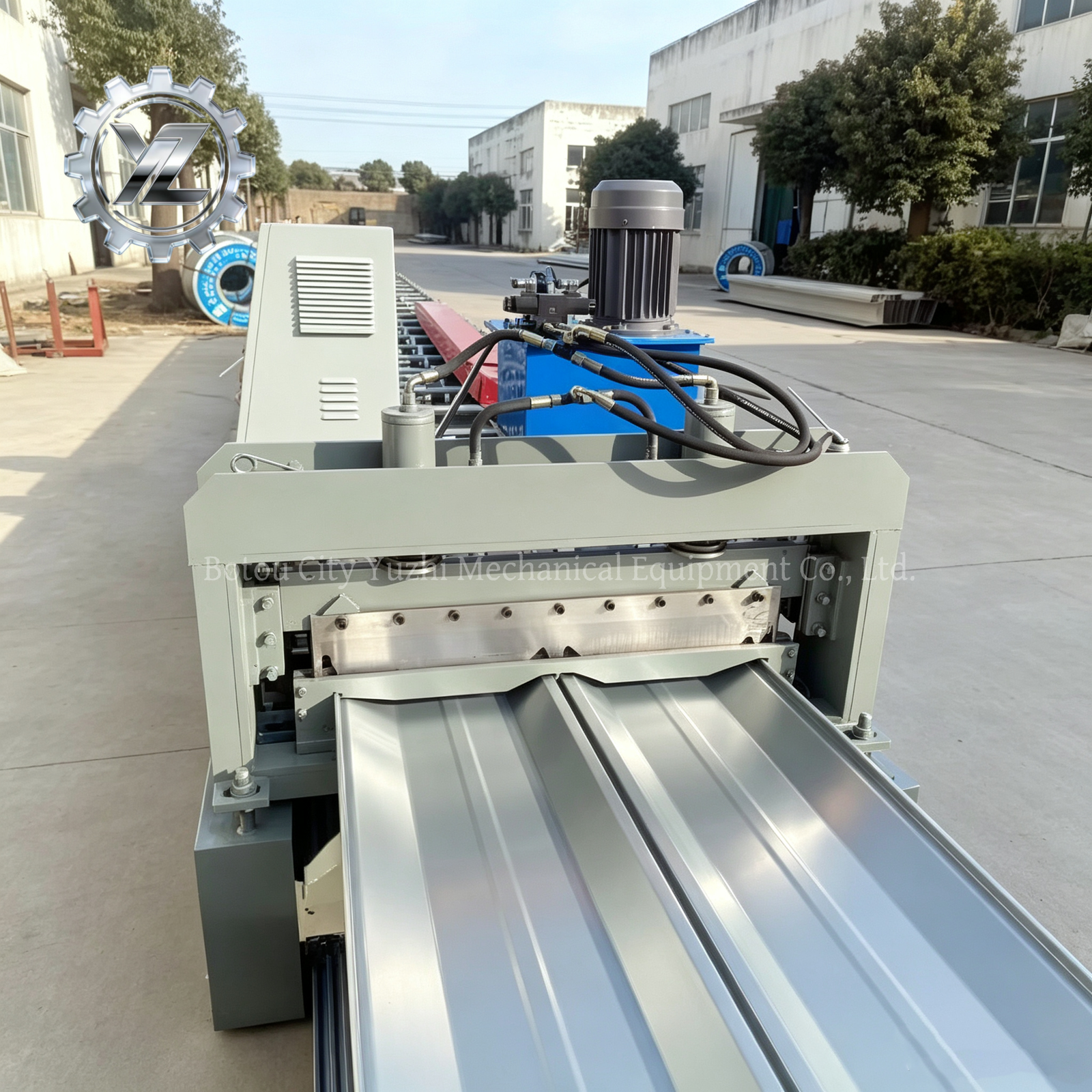

- Hydraulic Cutting System
- PLC Intelligent Control Cabinet
- Finished Product Receiving Table
3. Application Scenarios
Solar roof panels produced by our BIPV angle chi roof sheet making machine are widely used in photovoltaic power plants, solar industrial workshops, solar warehouses, BIPV green buildings, large-span solar canopies and new energy construction projects. It is the most popular professional roofing equipment for modern photovoltaic building integration systems.
4. Why Choose Our PV Standing Seam Roof Machine
We are a professional manufacturer focusing on solar BIPV roofing forming equipment. Our PV standing seam roof panel roll forming machine adopts mature solar groove forming technology, precise roller calibration and strict factory testing.
Compared with ordinary roof machines, our solar dedicated model has more accurate groove size, better solar clip matching and higher overall project safety. We provide customized solar roof profiles, overseas installation guidance, operator training, 12-month warranty and lifelong technical support. If you are looking for reliable solar angle chi roof roll forming machine for BIPV projects, contact us for free quotation and technical parameters.
