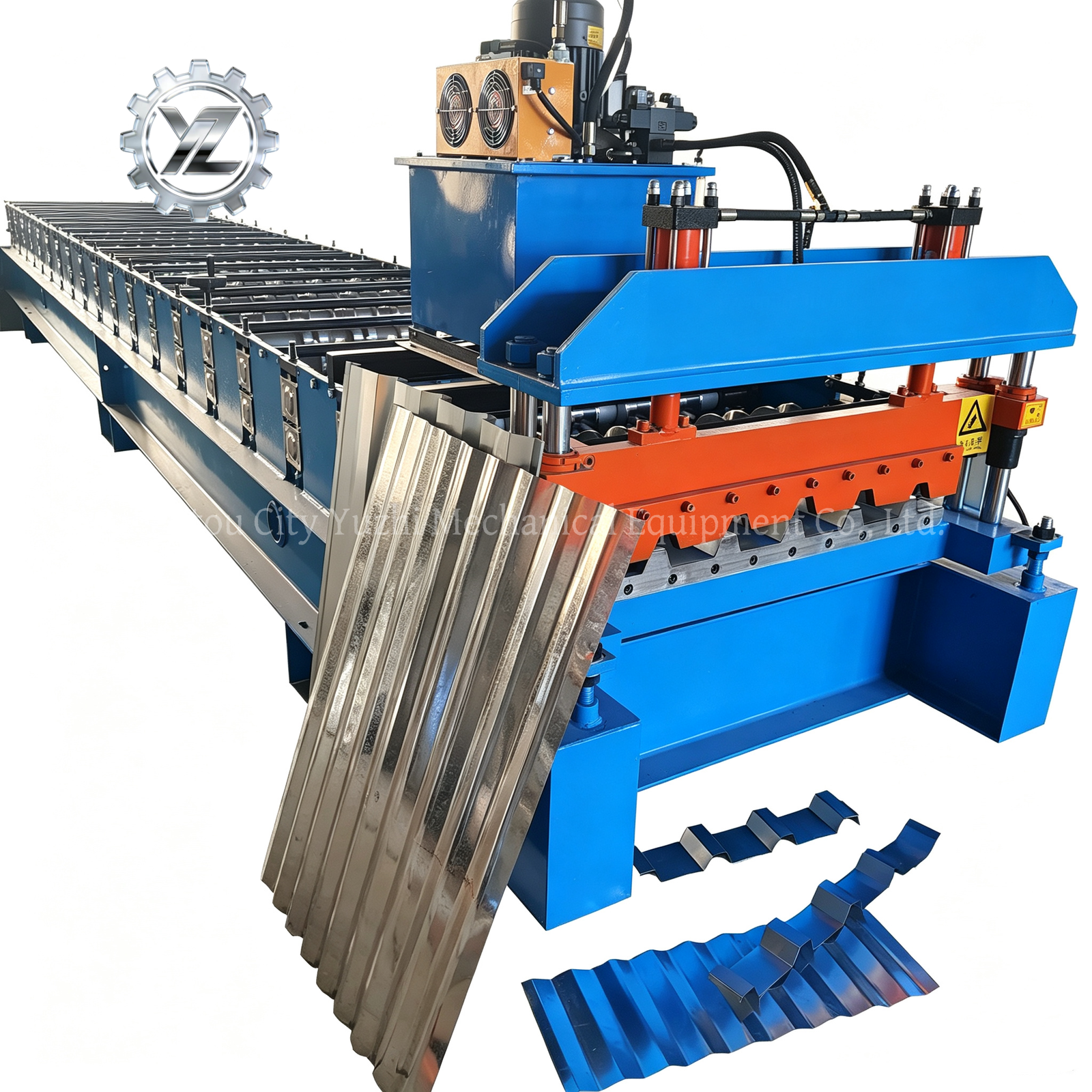

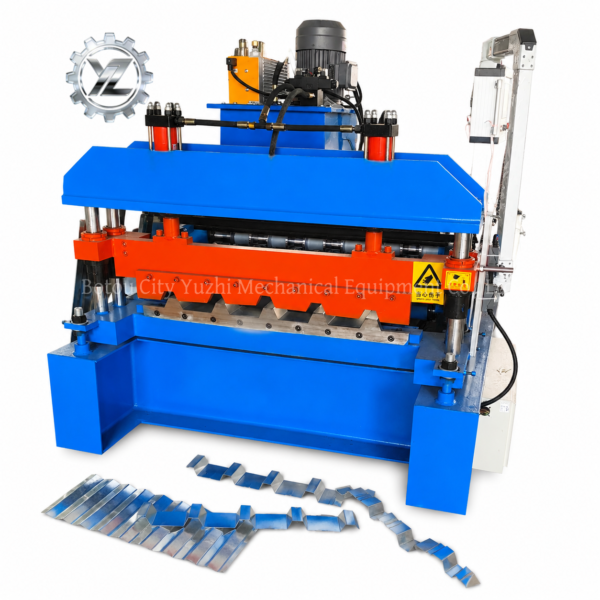

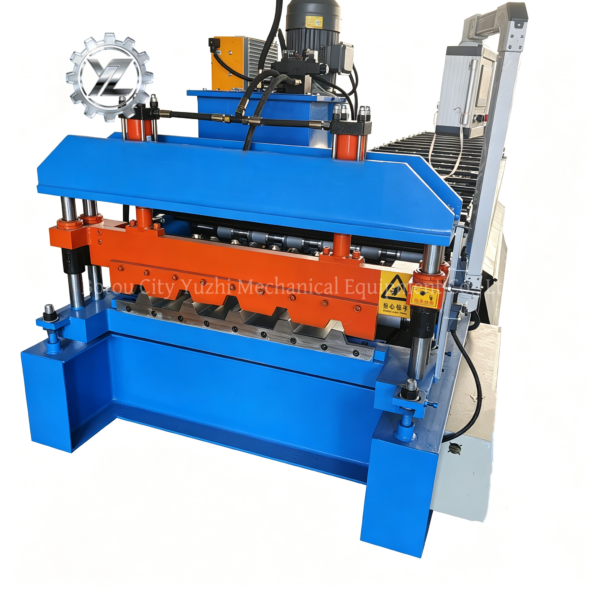

Hot Sale 686 High Rib Roof Panel Roll Forming Machine – Automatic IBR 686 Roof Sheet Making Line

Our hot sale 686 high rib roof panel roll forming machine is a popular high-efficiency cold roll forming equipment specially designed for producing standard IBR 686 high rib roof sheets. Featured with high rib reinforcement design, the finished 686 roof panel owns excellent wind resistance, bearing capacity and drainage performance, which is widely favored by global construction material manufacturers. This fully automatic 686 trapezoidal roof sheet forming machine adopts PLC intelligent control system, high-precision forming rollers and stable hydraulic cutting system, realizing continuous high-speed production. As a professional roll forming machine manufacturer, we provide standard and customized 686 high rib roof panel machines, complete after-sales service and technical support for worldwide customers.

1 Product Overview

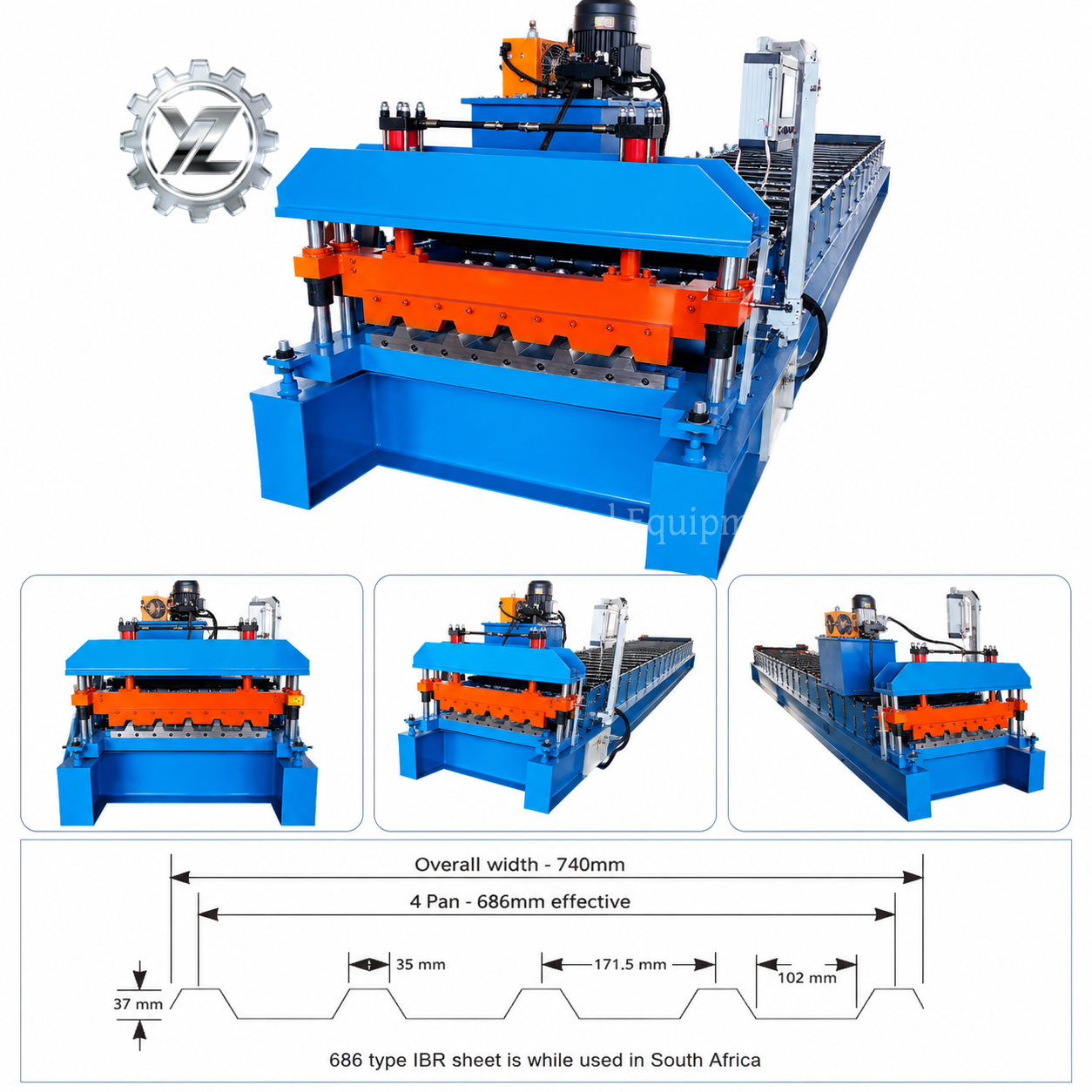

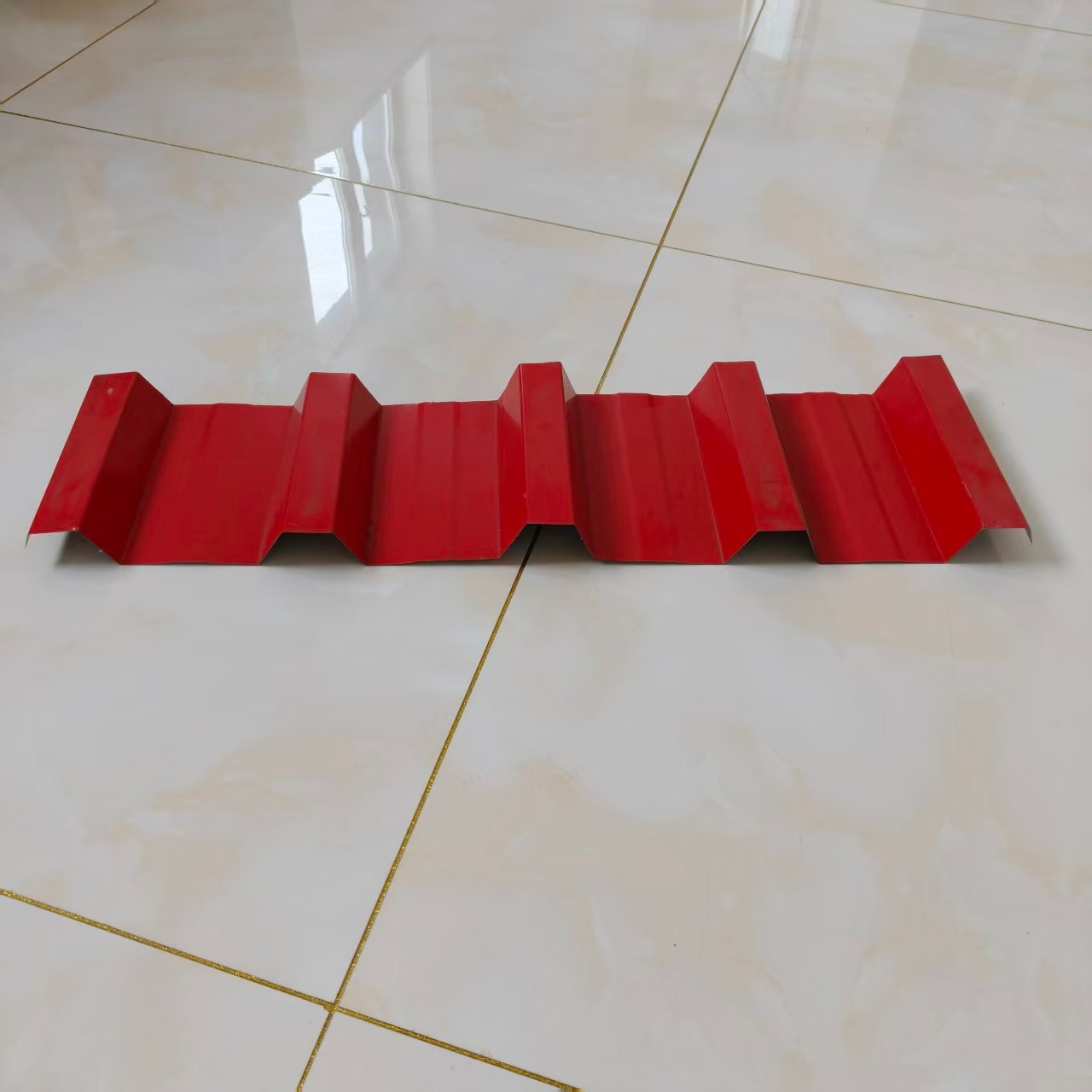

The 686 high rib roof panel roll forming machine is our best-selling trapezoidal roof forming equipment in the metal roofing industry. It is mainly used to process galvanized steel, PPGI and PPGL color steel coils into standard IBR 686 high rib roof panels with effective width 686mm. Different from ordinary low rib roof machines, the high rib structure greatly enhances the overall rigidity and stability of the roof sheet, effectively solving the problems of roof deformation, water leakage and poor wind resistance in harsh weather conditions.
This hot sale 686 roof sheet making machine supports raw material thickness from 0.3mm to 0.8mm, with stable production speed and high forming precision. The whole production line realizes automatic feeding, leveling, rolling forming, hydraulic punching and fixed-length cutting, greatly saving labor costs and improving production efficiency. It is the ideal equipment for mass production of high-quality 686 high rib roof panels.

2 Core Advantages of 686 High Rib Roof Panel Machine

– High Rib Reinforcement Design: The exclusive high rib forming process makes the finished 686 roof panel have stronger bearing capacity, wind resistance and seismic performance, suitable for coastal, high-altitude and other harsh environment construction projects.
– Stable & High Precision Operation: All forming rollers are made of high-quality 45# steel with chrome plating and quenching treatment, wear-resistant and non-deformable, ensuring consistent size of each 686 high rib roof sheet.

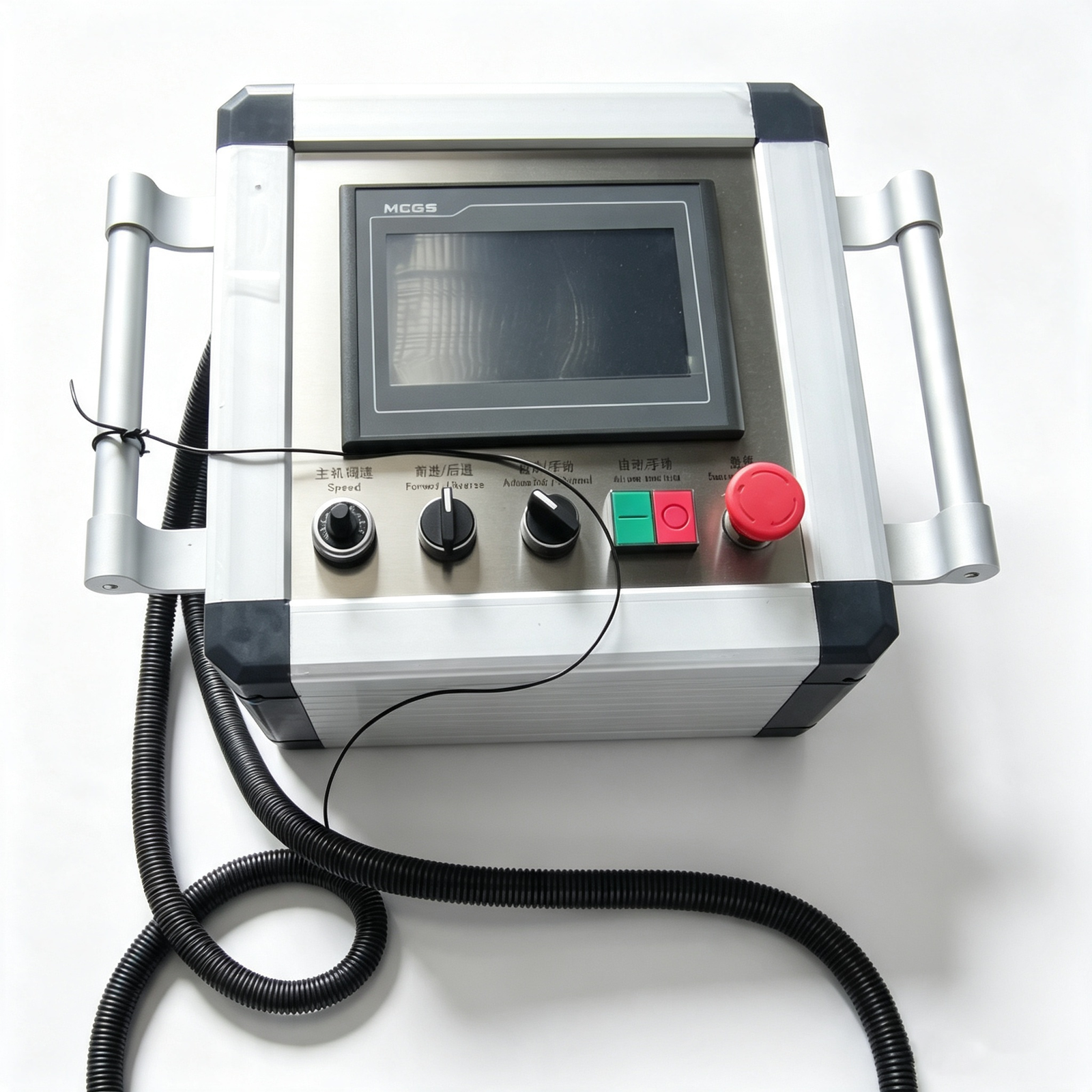

– Fully Automatic Intelligent Control: Equipped with imported PLC and touch screen control system, support multi-language switching, automatic counting, fixed-length cutting and fault alarm, simple operation and low failure rate.
– High Production Efficiency: The running speed can reach 8-15m/min, realizing continuous uninterrupted production, which greatly improves the output of 686 IBR roof panels and creates higher benefits for customers.
– Durable & Low Maintenance: Heavy-duty welded machine base effectively avoids vibration and deformation during long-term operation. The hydraulic cutting blade adopts Cr12MoV material, with smooth cutting surface and no burrs.
– Cost-Effective & Hot Selling: Factory direct sales without middlemen, reasonable price, complete specifications, long service life, becoming the most cost-effective 686 high rib roof roll forming machine in the global market.

3 Machine Structure & Configuration

The complete set of 686 high rib roof panel roll forming line includes the following standard components, and customized configuration is supported:
– Manual / Hydraulic Decoiler (3T/5T optional)
– Automatic Feeding and Leveling Device
– Main High Rib Roll Forming Station
– Hydraulic Punching & Cutting System
– PLC Intelligent Control Cabinet
– Finished Product Receiving Table

4 Application Scenarios

The high-quality 686 high rib roof panels produced by our hot sale machine are widely used in various steel structure construction projects, including industrial workshops, warehouses, logistics parks, residential villas, commercial buildings, agricultural greenhouses and outdoor stadiums. It is especially suitable for areas with strong wind and heavy rain, and is deeply recognized by customers from Africa, Southeast Asia, Middle East and other global markets.

5 Why Choose Our 686 High Rib Roof Forming Machine

We are a professional manufacturer focusing on the R&D and production of roll forming machinery for more than 15 years. The hot sale 686 high rib roof panel roll forming machine is our classic flagship product, with mature technology and stable performance. All machines will undergo strict debugging and running tests before delivery to ensure zero failure rate after customers receive the goods.
We provide comprehensive services including factory inspection, equipment customization, overseas installation guidance, operator training, 12-month warranty and lifelong technical support.

If you are looking for a reliable and cost-effective IBR 686 high rib roof sheet making machine, please feel free to contact us for the latest quotation and product catalog.
