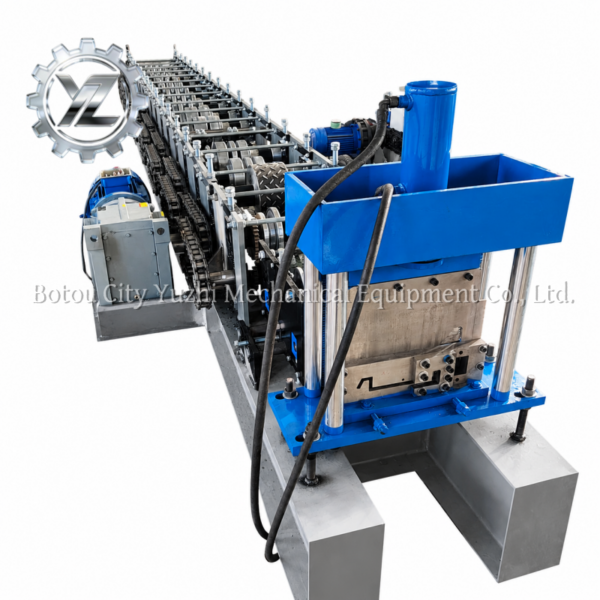

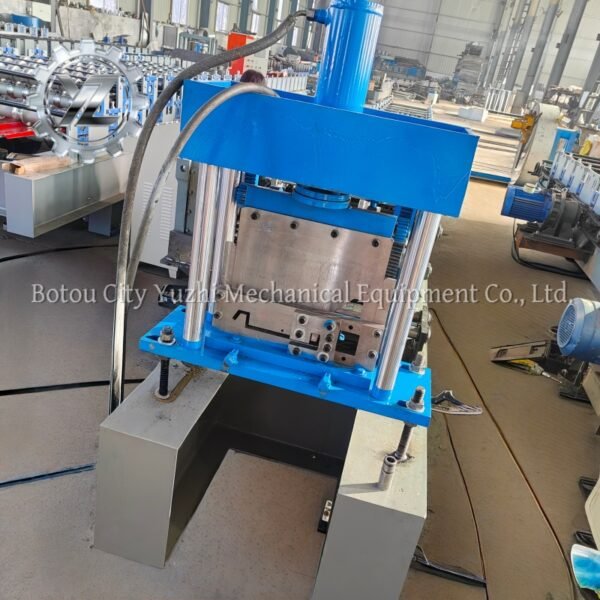

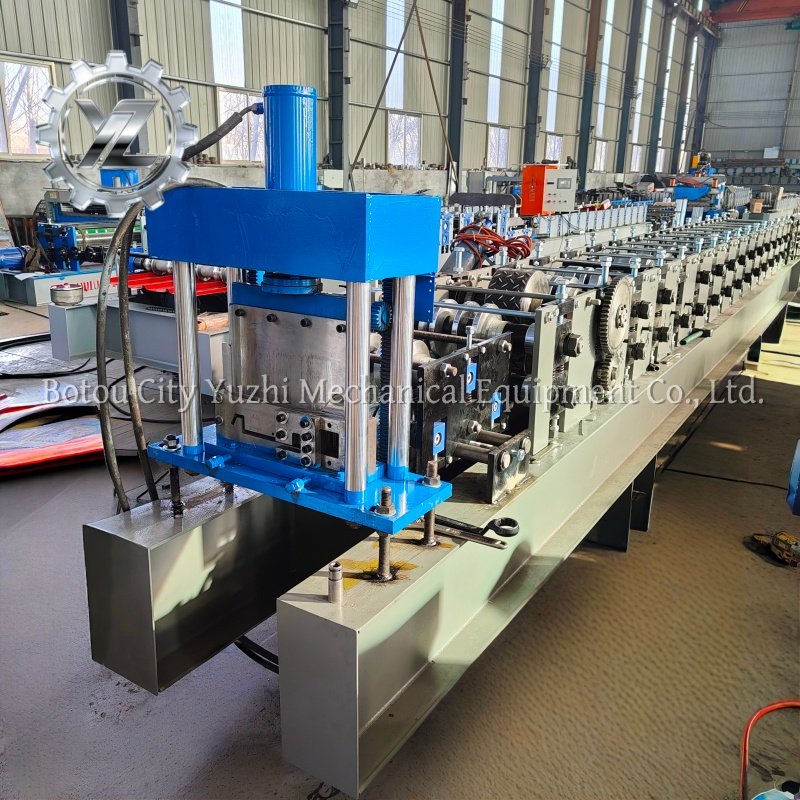

Dry Floor Deck Roll Forming Machine
Dry Floor Deck Roll Forming Machine – No Concrete Pouring Steel Deck Production Line
Our Dry Floor Deck Roll Forming Machine is specially designed to produce no concrete pouring steel floor deck panels for steel structure buildings, warehouses, shopping malls and multi-story factories. Different from traditional composite floor deck equipment, the finished dry floor deck can greatly shorten construction time and reduce concrete usage on site. This fully automatic dry type floor deck forming machine adopts PLC & servo driving system, stable running, high forming precision, supports customized deck profiles according to client drawings. As professional roll forming machine manufacturer, we provide complete production line, installation guide and long-term after-sales service for global buyers.
Introduction
The Dry Floor Deck Roll Forming Machine (also called no concrete pouring floor deck making machine) is advanced cold roll forming equipment for manufacturing dry steel floor deck sheets. The dry floor deck produced by this equipment is widely applied in modern steel construction projects, which eliminates heavy concrete pouring procedures on construction site, saving labor cost and construction period greatly.
This automatic dry type floor deck roll former consists of hydraulic decoiler, feeding guide device, main forming section, hydraulic punching unit, hydraulic cutting system and PLC intelligent control cabinet. All forming rollers adopt Cr12MoV material with quenching treatment, long service life and stable product dimension. Our no pour floor deck forming machine can process galvanized steel coil within thickness 1–2.5mm, various effective width profiles available for customization.
Advantages of Dry Floor Deck Roll Forming Equipment
- Fully automatic running, high production speed, low failure rate, suitable for mass production of dry floor deck panels
- Servo motor feeding & cutting, accurate length tolerance, neat cutting surface without burrs
- Customizable roll tooling, we can develop new molds according to clients’ dry floor deck drawings
- Heavy welded machine base, anti-deformation during long time continuous operation
- Human-machine touch screen operation, easy parameter setting, support storing multiple profile programs
- Complete line configuration optional: automatic stacking machine, film covering device
- Factory direct supply of dry floor deck roll forming machine, competitive price without middleman

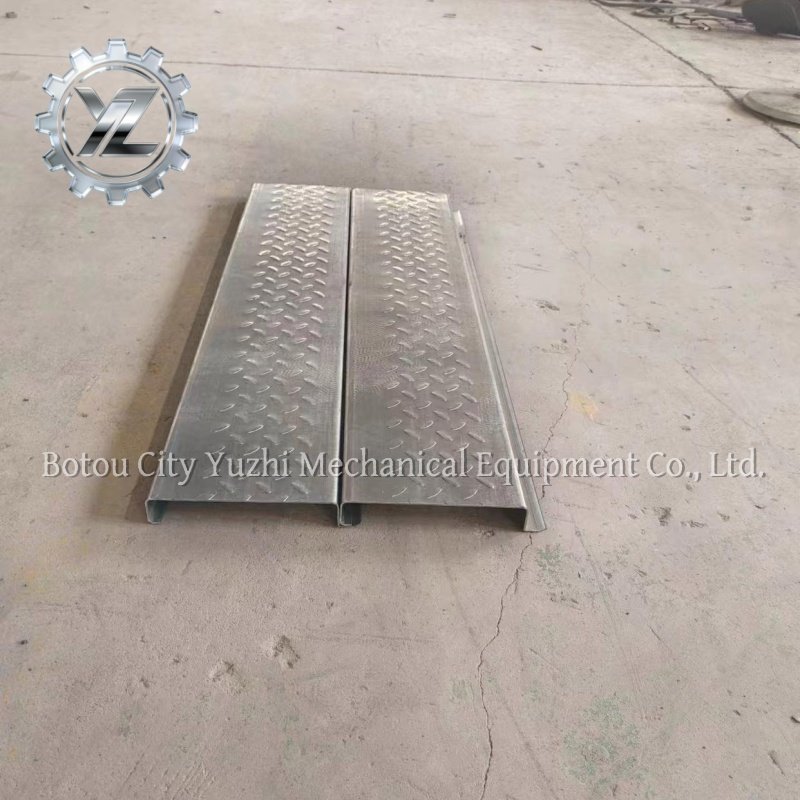

Application of Finished Dry Floor Deck
Steel structure warehouse, logistics park, commercial building, multi-story workshop, steel platform, prefabricated construction projects. Dry floor deck made by our equipment features high bearing capacity, easy installation, no need on-site concrete pouring.
Main Components
- Uncoiler
- Leveling & Feeding Part
- Roll Forming Station
- Embossing / Punching Mechanism
- Hydraulic Shearing Unit
- PLC Control Cabinet
- Hydraulic Pump
Why Choose Us for Dry Floor Deck Making Machine
We are professional manufacturer specializing in various cold roll forming machinery, including dry floor deck roll forming machine, composite floor deck machine, roof panel roll former, wall panel forming equipment, purlin machines.
All our roll forming machines pass strict testing before delivery. We offer overseas installation service, operator training, 12 months warranty and lifelong technical support. Buyers can visit our factory to inspect machine progress anytime.
If you are looking for reliable no concrete pouring floor deck roll forming machine supplier, welcome to send us your required profile, coil thickness and production demand for detailed quotation.
