Our fully automatic 686 high rib trapezoidal roll forming machine produces standard 686mm effective width IBR roofing panels. Heavy-duty frame, PLC control, fits PPGI/GI/G550 steel, popular in Africa, Southeast Asia & Latin America.

686 High Rib Trapezoidal IBR Roll Forming Machine: Top Choice for Global Metal Roof Manufacturers

The 686 high rib trapezoidal profile, also widely known as IBR sheet, is the most mainstream metal roofing specification across Southern Africa, East Africa, Southeast Asia and South America. Its 38mm deep high rib design delivers superior load-bearing capacity, excellent rainwater drainage and strong wind uplift resistance, ideal for industrial warehouses, commercial factories, agricultural barns and residential metal roof projects.

Our fully automatic 686 high rib trapezoidal roll forming machine is professionally engineered to mass-produce uniform 686mm effective cover width IBR panels. With heavy-duty mechanical structure, precision forming rollers and intelligent PLC automatic control, this production line solves core pain points of traditional cheap roll formers: unstable panel size, easy roller wear, frequent oil leakage and complicated manual operation. For metal fabricators, roofing contractors and steel processing factories, this machine balances production efficiency, long service life and overall input cost, becoming a cost-effective core production equipment.

1. Core Advantages of Our 686 High Rib Trapezoidal Roll Forming Machine

1.1 High Rib Structural Design for Superior Roof Panel Performance

• Standard finished effective width: 686mm, 4 deep ribs with 38mm rib height
• Deep trapezoidal ribs improve structural rigidity, reduce intermediate purlin usage and cut construction costs for end customers
• Groove-type rib channel accelerates rainwater flow, effectively preventing roof leakage in heavy rainfall areas
• Anti-lifting rib structure resists strong winds and heavy snow loads, meeting local building standards in Africa and tropical regions

1.2 Heavy-Duty Anti-Deformation Machine Frame

• Main frame adopts 16mm thick integral welded steel plate, stress relief treatment to avoid long-term running deflection
• Overall machine weight reaches over 8 tons, stable operation under continuous 24-hour production without panel deviation
• Thickened base support, anti-vibration design, low noise during high-speed forming

1.3 Precision Hardened Forming Rollers & Solid Shafts

• Rollers: 45# solid steel, CNC precision machining, surface hard chrome plating, wear resistance 3x higher than ordinary cast iron rollers
• Main shaft: 72mm solid tempered steel, no bending when forming G550 high-tensile hard steel coils
• Multi-stage gradual forming design, no sheet cracking, wrinkling or scratch on color steel surface

1.4 Full Automatic PLC Touch Screen Control System

• Imported PLC + 7-inch touch screen, one-click set target cutting length, automatic counting & stop
• Tolerance control within ±1.5mm for panel length, uniform rib spacing and width for every finished sheet
• Human-machine interface supports multi-language (English, Spanish, French) for global operators
• Fault self-diagnosis function, real-time alarm display to lower maintenance difficulty

1.5 Stable Hydraulic Cutting System

• Hydraulic stop cutting design, no flying shear jamming failure
• Cutting blade material: Cr12MoV alloy steel, high hardness, long service life, smooth cutting edge without burrs
• Independent hydraulic station with sealing anti-leak structure, no oil contamination on finished panels

1.6 Wide Raw Material Compatibility

Suitable for processing multiple metal coils widely used in global construction:

• PPGI prepainted color steel, GI galvanized steel, GL aluzinc steel, aluminum sheet
• Material thickness range: 0.3mm – 0.8mm, supports G550 full hard high-strength roofing steel
• Matching feeding coil width: 914mm standard raw coil

1.7 High Production Efficiency & Low Labor Cost

• Adjustable forming speed: 10–18 m/min, daily output up to 8,000+ meters of roof panels
• Single-person operation from uncoiling to finished sheet output, greatly saving workshop labor expense
• Integrated automatic receiving table, stacked panels neatly without secondary sorting

2. Complete Production Line Workflow

Manual Uncoiler → Material Guiding Feeding → Multi-Stage Roll Forming → Length Measuring Encoder → Hydraulic Automatic Cutting → Finished Product Receiving Table

All links run automatically without manual intervention after parameter setting.

3. Standard Technical Parameters of 686 High Rib Trapezoidal Roll Forming Machine

4. Why Choose Our 686 High Rib Trapezoidal Roll Forming Machine Over Cheap Competitors?

Pain Points of Low-Quality IBR Machines on the Market

1. Thin thin-walled frame, easy deformation after half a year, serious sheet deviation
2. Cast iron rollers without chrome plating, quick wear leading to unclear rib lines
3. Thin hollow shafts, bending when processing thick G550 steel
4. Simple relay control instead of PLC, large size error, frequent breakdowns
5. Inferior hydraulic components, serious oil leakage polluting finished panels
6. Short 6-month warranty, expensive spare parts and slow after-sales response

Our Core Competitive Advantages

1. Independent factory with 15+ years roll forming machine R&D & production experience, all parts self-produced, no outsourcing assembly
2. Strict raw material inspection, all key components adopt industrial-grade standard materials
3. Complete CE, ISO certification, meets export standards for all countries
4. Global after-sales support: English operation manual, video installation guide, 24-hour online technical service
5. Customization available: adjustable speed, servo flying shear upgrade, double-layer 686+760 combined machine, matching automatic decoiler

5. Customization Options Available

• Upgrade to high-speed flying shear type (max speed 25m/min) for large-volume factories

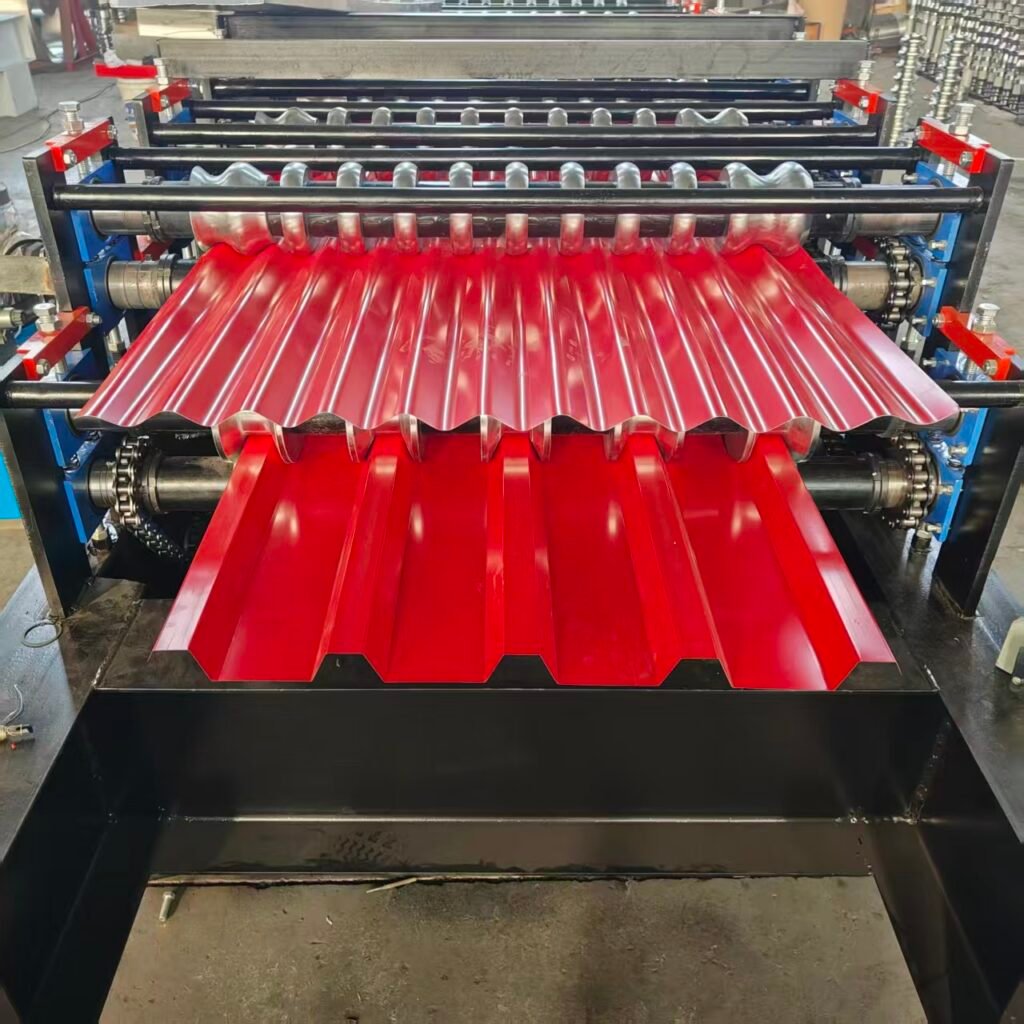

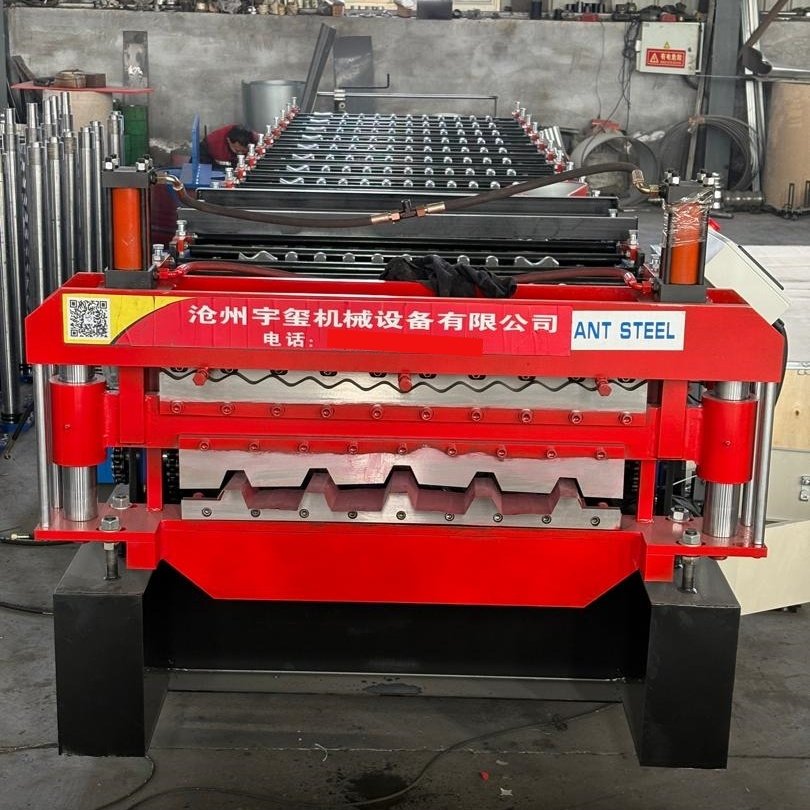

• Double-layer composite machine: produce 686 trapezoidal sheet + another wall/roof profile in one line
• Automatic hydraulic decoiler (3 tons / 5 tons capacity) instead of manual uncoiler
• Voltage & frequency adjustment to match local power supply (380V/415V/220V, 50Hz/60Hz)
• Custom color of machine body according to brand requirements

6. FAQ for Global Buyers

Q1: Which countries is the 686 IBR profile popular in?

A: South Africa, Zimbabwe, Zambia, Mozambique, Tanzania, Kenya, Nigeria, Philippines, Indonesia, Malaysia, Peru, Bolivia and other regions with large demand for metal industrial roofs.

Q2: Can this machine process G550 high tensile hard steel?

A: Yes. Thickened solid shaft and reinforced forming rollers are specially optimized for G550 steel, no deformation or cracking during forming.

Q3: What is the delivery time?

A: Standard single-layer 686 machine: 15–20 working days; customized high-speed/double-layer model: 30–40 working days.

Q4: How about after-sales service for overseas customers?

A: We provide full English operation, maintenance and wiring manuals, complete spare parts list. Remote video debugging support 24/7; overseas engineer door-to-door installation service can be arranged upon request.

Q5: What’s the package for sea transportation?

A: Main machine wrapped with plastic waterproof film, key components packed in wooden cases, fixed with steel wire inside container to avoid collision damage during long sea transit.

Conclusion

If you are running a metal processing factory, roofing material supply business or steel structure engineering company, the 686 high rib trapezoidal IBR roll forming machine is your most reliable mass production equipment. It balances stable operation, long service life and reasonable investment cost, helping you produce high-standard roof panels to win more local construction orders.

Contact our sales team now to get detailed quotation, machine layout drawings and real production video of the 686 IBR roll forming machine.
